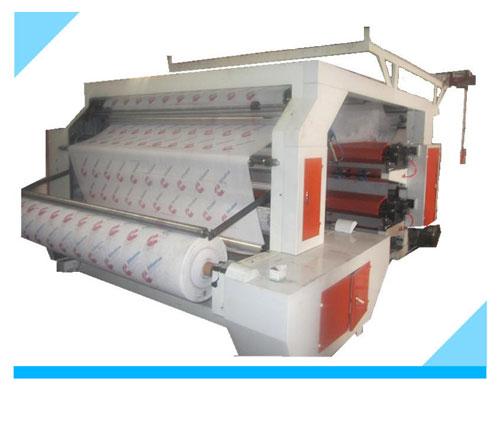

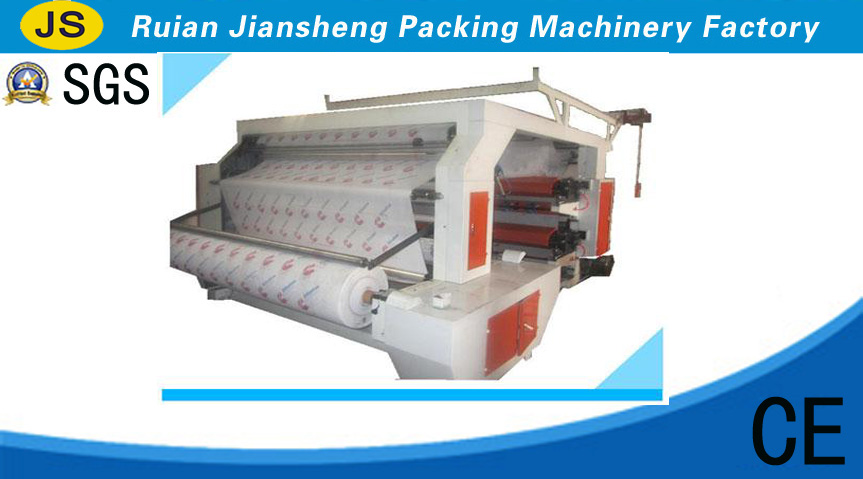

4 Color Non-Woven Cloth Printing Machine

4 Color Non-Woven Cloth Printing Machine Download Email Print this Page

Products Name : 4 Color Non-Woven Cloth Printing Machine

Bottom

Return

Specifications

USE:

It adopts environmental ink and has advantage of lower cost, this is an ideal machine for mass lots production manufacturer working. When printing, this machine can make sure keep 24 hours pressure all the time.

Printing width Item	800mm	1000mm		1200mm	1400mm	1600mm		1800mm	2000mm		2200mm
Printing color	4
Printing length	7.5"-40"/7.5"-50"
Printing plate lifting system	Pneumatic/Hydraulic press control
Mechanical speed	80m/min
Printing speed	60m/min
Anilox cylinder	Metal: 10DK-100DK(Germany)
Register precision	Longitude:±0.20mm Transverse:±0.20mm
Rewinder/Unwinder DIA	ø 600mm/ ø 800mm/ ø 1000mm
Master motor	3KW	3.7KW		4KW	5.5KW	5.5KW	7.5KW		7.5KW	11KW
Unwinder motor	1.1 KW			1.5 KW		2.2 KW			3.0 KW
Rewinder motor	1.5 KW			2.2 KW		3.0 KW			3.7KW
Electrical header	21KW		24KW	27KW	30KW	33KW		36KW	40KW	45KW
Blower of header	0.75KW×3		1.1KW×3	1.1KW×3	1.5KW×3	1.5KW×3		1.5KW×3	2.2KW×3	2.2KW×3
Blower of nature wind	0.75KW		1.1KW	1.1KW	1.5KW	1.5KW		1.5KW	2.2KW	2.2KW
Inking motor	370W		370W	370W	370W	370W		750W	750W	750W
Master frequency converter	3.7KW		5.5KW	5.5KW	7.5KW	7.5KW		11KW	11KW	15KW
Weight	4950Kg		5150Kg	5350Kg	5550Kg	5800Kg		6050Kg	6300Kg	6800Kg
Master power	29KW		34KW	39KW	42KW	47KW		52KW	60KW	65KW
Dimension (L×W×H)	5.0m × 2.0m × 2.6m		5.0m × 2.2m × 2.6m	5.0m × 2.4m × 2.6m	5.0m × 2.6m × 2.6m	5.0m × 2.8m × 2.6m		5.0m × 3.0m × 2.6m	5.0m × 3.2m × 2.6m	5.0m × 3.4m × 2.6m
